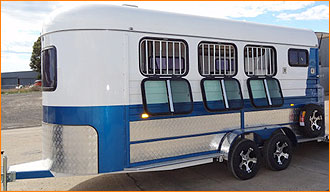

4 Horse Angle Load Float
Standard Deluxe 4hal-sd
28,500.00 Incl GST


4 Horse Angle Load Float Standard Deluxe Float 4hal-sd

Please Note- All Our Floats Come With 26mm Composite Flooring As Standard


4hal Standard Deluxe, 2 wheel electric braked axles fitted with electric breakaway system, top quality roller rocker suspension, 4 x 8 leaf military springs mounted to hot dipped galvanised 4mm chassis. All nuts and bolts are stainless steel and heavy duty 50mm trailer axles, and more!

Upgrade your horse float with one of our many option extra's. "
Click Here for more info"

You will not find a better built float. Australian wide delivery upon request.

Call 1800 214 334 today!

INTERIOR & EXTERIOR

  • Drawbar checker plate 1.2mm
  • Floor rubber matting - 10mm
  • 26mm Composite Flooring
  • Horse protection frame - fully padded
  • Rear door hitches - 6mm copper hinges
  • Rubber matting for horse door - 28mm ribbed rubber matting
  • Rubber matting inner side panels - 6mm rubber matting
  • Rug Rack- Located At Rear Of Float
  • Side horse rings x 4

WINDOWS & DOORS

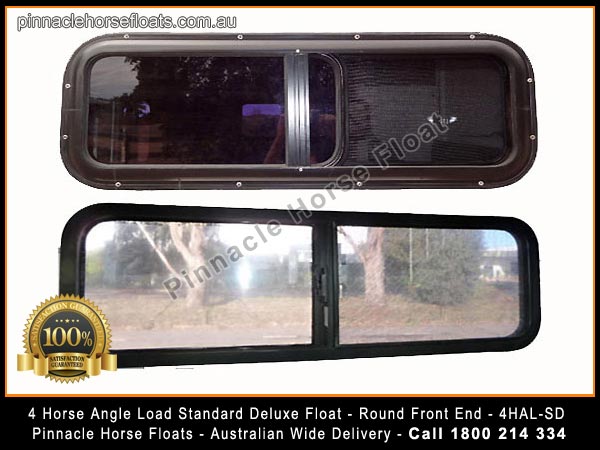

  • Front window 1 x 1220 x 610
  • Roof fully moulded

WHEELS & TYRES

  • Heavy duty 18R14c light truck tyre
  • Wheels 14" alloy rims

AXLES & SUSPENSION

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes - full twin axle electric brakes with "Brake Away System"
  • Nuts and Bolts - all stainless steel
  • Suspension - 8 leaf roller rocker tandem spring axles

CHASSIS & FRAME

  • Body Panels- Galvanised 1.2mm
  • Double Dipped Galvanised RHS 4mm Chassis
  • Frame Double Dipped RHS 2.5mm

LIGHTS & RETRO REFLECTORS

  • Rear lights - L.E.D
  • Retro reflectors x 8 units
  • Side lights x 4 units
  • Trailer Plug - square seven pin

DIMENSIONS (L x W x H)

  • Size Of Side Door- 1755 x 615
  • Size Of Ramp Door- 2020 x 1210
  • Body Dimensions- 4635 x 1980 x 2230
  • Inner Dimensions- 4610 x 1930 x 2155
  • Internal Height- 2200mm
  • Overall Dimensions- 5505 x 2280 x 2590
  • Size Of Bays- 230cm Long x 75cm Wide

WEIGHT

  • Gross 3650 kg
  • Tare 1800kg


Optional Extras for 4 Horse Angle Load  Float <br> Standard Deluxe 4hal-sd
