For complete details and further information:

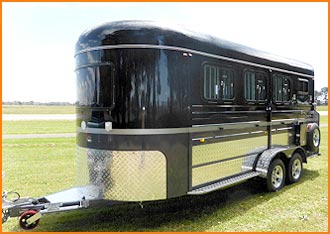

4 Horse Angle Load Float Luxury 4hal-Lux
31,000.00 Incl GST
Click here to
Calculate Shipping


4 Horse Angle Load Float Luxury Float 4hal-Lux

Please Note- All Our Floats Come With 26mm Composite Flooring As Standard


4hal Luxury float, Comes with kitchen, sink, fridge, microwave, Awnlux awning, horse yards, 90 Litre water tank, 4 wheel electric braked axles fitted with electric breakaway system, top quality roller rocker suspension, 4 x 8 leaf military springs mounted to hot dipped galvanised 4mm chassis. All nuts and bolts are stainless steel and heavy duty 50mm trailer axles, and more!

Upgrade your horse float with one of our many option extra's. "Click Here for more info"

You will not find a better built float. Australian wide delivery upon request.
Call 1800 214 334 today!

INTERIOR & EXTERIOR

  • Drawbar checker plate 1.2mm
  • Floor rubber matting - 10mm
  • 26mm Composite Flooring
  • Horse protection frame - fully padded
  • Rear door hitches - 6mm copper hinges
  • Rubber matting for horse door - 28mm ribbed rubber matting
  • Rubber matting inner side panels - 6mm rubber matting
  • Rug Rack- Located At Rear Of Float
  • 6 x Horse Panels
  • Fiamma awning
  • 240v microwave
  • 90 litre water tank
  • Side horse rings x 4
  • 12/240v refrigerator

WINDOWS & DOORS

  • Front window 1 x 1220 x 610
  • Roof fully moulded & Lined

WHEELS & TYRES

  • Heavy duty 18R14c light truck tyre
  • Wheels 14" alloy rims

AXLES & SUSPENSION

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes - full twin axle electric brakes with "Brake Away System"
  • Nuts and Bolts - all stainless steel
  • Suspension - 8 leaf roller rocker tandem spring axles

CHASSIS & FRAME

  • Body Panels- Galvanised 1.2mm
  • Double Dipped Galvanised RHS 4mm Chassis
  • Frame Double Dipped RHS 2.5mm

LIGHTS & RETRO REFLECTORS

  • Rear lights - L.E.D
  • Retro reflectors x 8 units
  • Side lights x 4 units
  • Trailer Plug - square seven pin

DIMENSIONS (L x W x H)

  • Size Of Side Door- 1755 x 615
  • Size Of Ramp Door- 2020 x 1210
  • Body Dimensions- 4635 x 1980 x 2230
  • Inner Dimensions- 4610 x 1930 x 2155
  • Internal Height- 2200mm
  • Overall Dimensions- 5505 x 2280 x 2590
  • Size Of Bays- 230cm Long x 75cm Wide

WEIGHT

  • Gross 3650 kg
  • Tare 1900kg


Optional Extras for 4 Horse Angle Load Float <br> Standard Deluxe 4hal-sd
