Light Weight Composite Panel 3 Horse Angle Load Gooseneck With Slideout Lounge, Seperate Shower Room, Toilet & Ensuite Suitable For Large Horses (Bays 800wide x 1600Long)
3HAL-COMSS
This Gooseneck Is Over 10 Meters Long & Weighs Only 3300Kg
- Tare- 3300kg
- GVM- 4500kg
- Ball Weight- 800kg
- Axle Load Capacity- 5500kg
Comes With The Following Extras That Can Be Removed
- Seperate Shower Room & Ensuite
- Wineguard Free Vision Wind up Ariel
- Full Monitoring Camera System Horse Area
- Generator Box
- Dometic Aircondition
- 12v Flush Toilet
- 185 Litre 12v Fridge Freezer
- Electric Werada Awning
- Slide Out Awning To Stop Water Sitting On Top Of Slideout
- Electric Remote Controlled Legs
- Height Lifted
- Cold Water Tap Outside
- Fully Adjustable Dividers
- Western Saddle Box
- Seperate Roof/Boat Vent In Bathroom Area
Comes Standard With The Following-
INTERIOR & EXTERIOR
- 12V volt built in 185 litre Fridge
- Full Compisite light weight paneling
- Caravan windows with in-built blinds
- Fully adjustable dividers

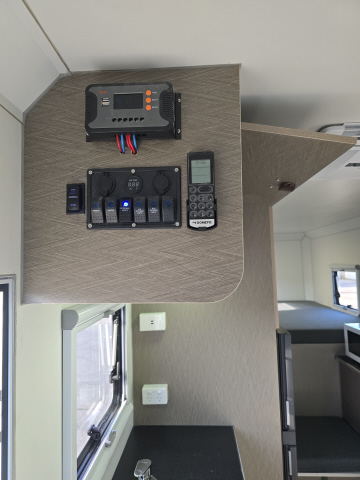

- 200Watt Solar Panel & Regulator
- 150A/H Battery & Electronic Battery Charger
- 240 volt dometic heating and cooling airconditioner
- Electric Werada Italian Awning 5.5 meters
- Seperate shower room with Hot and cold shower
- Flush Toilet
- Ensuite room with vanity basin & mirror
- Combination fan led light in bathroom
- Perpex shower door
- Kitchen with self closing drawers and wardrobe
- Suburban instant gas hot water system
- Roof Double Lined In Living Area And Horse Area
- Caravan Door
- Full Horse Camera Monitoring System In Rear Of Gooseneck
- Large Bays 800mm wide
- Cold Water Outside Tap
- Electric Remote Controlled Legs
- Western Saddle Box 4 Horse or 3 Horse with cage avove
- Full Overhead Rug Rack
- Quick Connect Gas Fitting
- 240v Microwave Oven
- 2 x 80 Liter water Tanks With American Surfloaw Water Pump
- Slide-Out With Table That Drops Down For Another Double Bed
- Seperate Tack Room Between Living And Horses
- Drawbar checker plate 1.2mm
- Floor rubber matting - 12mm
- 26mm Composite Flooring
- Horse protection frame - fully padded
- Rear door hitches - 6mm copper hinges
- Rubber matting for horse door - 28mm ribbed rubber matting
- Rubber matting inner side panels - 6mm rubber matting
- Rug rack - full length overhead
- Side horse rings x 6
WINDOWS & DOORS
- Caravan Window x 2
- Front window 1 x 1220 x 610
- Roof fully moulded
- Rooftop Vents x 3
- Side windows x 4 vertical open
- Sliding Windows x 6
WHEELS & TYRES
- Heavy duty 195R16 light truck tyre
- Wheels 16" steel rims
AXLES & SUSPENSION
- Axles solid 2 x 63 x 63 RHS, both with electric braked axle
- Brakes - full single axle electric brakes with "Brake Away System"
- Nuts and Bolts - all stainless steel
- Suspension - 8 leaf roller rocker tandem spring axles
CHASSIS & FRAME
- Body panels galvanised 1.5mm
- Double dipped galvanised RHS 4mm Chassis
- Frame double dipped RHS 2.5mm
LIGHTS & RETRO REFLECTORS
- Rear lights - L.E.D
- Retro reflectors x 8 units
- Side lights x 6 units
- Trailer Plug - square seven pin
DIMENSIONS (L x W x H)
- Size of side door mm: 1755 x 615
- Size of ramp door mm: 2020 x 1210
- Body dimensions mm: 10.15m(L) x 1980(W) x 2200(H)
- Inner dimensions mm: 10m(L) x 1930(W) x 2155(H)
- Internal height mm: 2200(H)
- Overall dimensions mm : 10.5m(L) x 2500(W) x 2590(H)
- Size of bays cm: 260(L) x 80(W)
SUGGESTED OPTIONAL EXTRAS
- Combination Diesel Hotwater Air Heater
- Under Horse Gead Storage
- Mains Water Connection
- Outside Gas Quick Connects For BBQ
- Wineguard Television Ariel
- Diesel Cooktop
- 12v Rangehood
