86,000.00 Incl GST

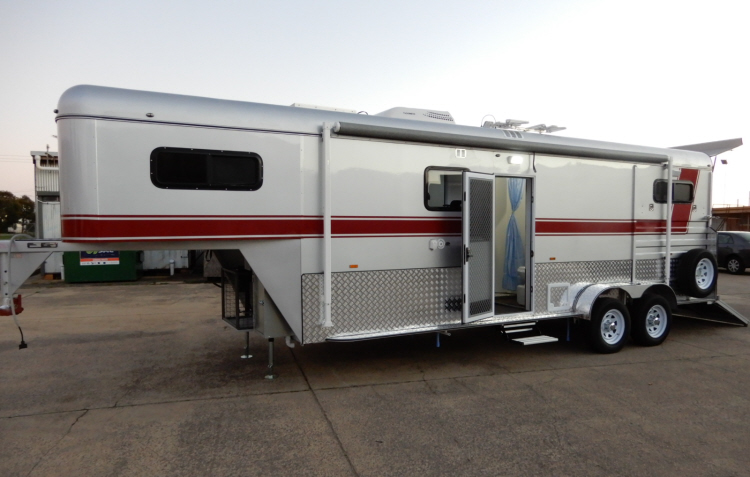

ULTIMATE 3 Horse Angle Load Gooseneck Slideout With Everything Inc, Seperate Shower Room, Seperate Tack Room, Slideout BBQ etc

Please Note- All Our Floats Come With 26mm Composite Flooring As Standard


 Extras Than Can Be Removed Below-

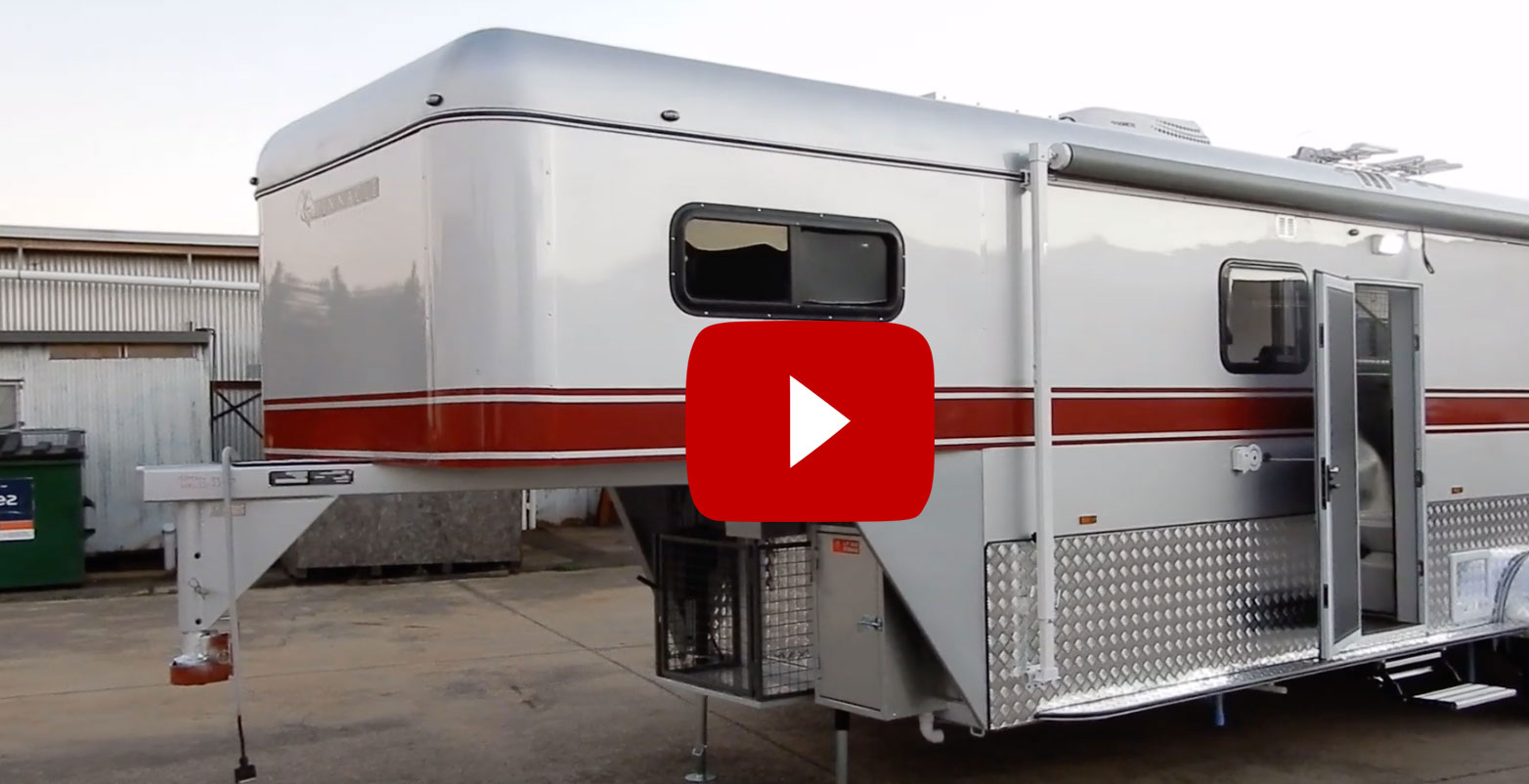

  1. Seperate Shower Room With Hot Water & Shower & Ensuite
  2. Wineguard Free Vision Wind up Ariel
  3. Full Monitoring Camera System Horse Area
  4. 12v TV/DVD
  5. Generator Box
  6. Slideout BBQ & BBQ Box
  7. Dometic Aircondition
  8. 12v Flush Toilet
  9. 185 Litre Arana 12v Fridge Freezer
  10. Rubber Divider On first Bay
  11. Dometic Werada Awning
  12. Slide Out Awning To Stop Water Sitting On Top Of Slideout
  13. Electric Remote Controlled Leg
  14. Height Lifted
  15. Cold Water Tap Outside
  16. Roof Fully Lined Living and Horse Area
  17. Fully Adjustable Dividers
  18. Western Saddle Box
  19. Seperate Roof/Boat Vent In Bathroom Area

Comes Standard With The Following-

INTERIOR & EXTERIOR

  • 12V volt built in 185 litre Arana Fridge
  • 240 volt dometic heating and cooling airconditioner
  • Werada Italian Awning  5.5 meters
  • Seperate shower room with Hot and cold shower
  • Flush Toilet
  • Kitchen with self closing drawers and wardrobe
  • Suburban instant gas hot water system
  • Roof Double Lined In Living Area And Horse Area
  • Caravan Door
  • Full Horse Camera Monitoring System In Rear Of Gooseneck
  • Both Hot And Cold Water Outside Tap
  • Electric Remote Controlled Leg
  • Wineguard Windup Television Ariel
  • 12Volt Tv/DVD Player
  • Tri Fold Television Bracket
  • Western Saddle Box 4 Horse
  • Full Overhead Rug Rack
  • BBQ Door Supplied In Side Of Float With Gas Slideout BBQ, Includes Quick Connect Gas Fitting
  • 240v Microwave Oven
  • Large Perspex Roof Vent In Shower Area
  • 2 x 80 Liter water Tanks With American Surfloaw Water Pump
  • Slide-Out With Table That Drops Down For Another Double Bed
  • Seperate Tack Room Between Living And Horses
  • Drawbar checker plate 1.2mm
  • Floor rubber matting - 12mm
  • 26mm Composite Flooring
  • Horse protection frame - fully padded
  • Rear door hitches - 6mm copper hinges
  • Rubber matting for horse door - 28mm ribbed rubber matting
  • Rubber matting inner side panels - 6mm rubber matting
  • Rug rack - full length overhead
  • Side horse rings x 3

WINDOWS & DOORS

  • Caravan Window x 1
  • Front window 1 x 1220 x 610
  • Roof fully moulded
  • Rooftop Vents x 3
  • Side windows  x 4 vertical open
  • Sliding Windows x 6

WHEELS & TYRES

  • Heavy duty 195R16 light truck tyre
  • Wheels 16" steel rims

AXLES & SUSPENSION

  • Axles solid 2 x 63 x 63 RHS, one with electric braked axle
  • Brakes - full single axle electric brakes with "Brake Away System"
  • Nuts and Bolts - all stainless steel
  • Suspension - 8 leaf roller rocker tandem spring axles

CHASSIS & FRAME

  • Body panels galvanised 1.5mm
  • Double dipped galvanised RHS 4mm Chassis
  • Frame double dipped RHS 2.5mm

LIGHTS & RETRO REFLECTORS

  • Rear lights - L.E.D
  • Retro reflectors x 8 units
  • Side lights x 6 units
  • Trailer Plug - square seven pin

DIMENSIONS (L x W x H)

  • Size of side door mm:       1755 x 615
  • Size of ramp door mm:     2020 x 1210
  • Body dimensions mm:       9500(L) x 1980(W) x 2200(H)
  • Inner dimensions mm:       8025(L) x 1930(W) x 2155(H)
  • Internal height mm:           2200(H)
  • Overall dimensions mm :    9500(L) x 2500(W) x 2590(H)
  • Size of bays cm:                248(L) x 75(W)



  • GTM - 4500kg

Optional Extras for 3 Horse Angle Load Gooseneck Float<br> 3hal-g Square Front End
