For complete details and further information:

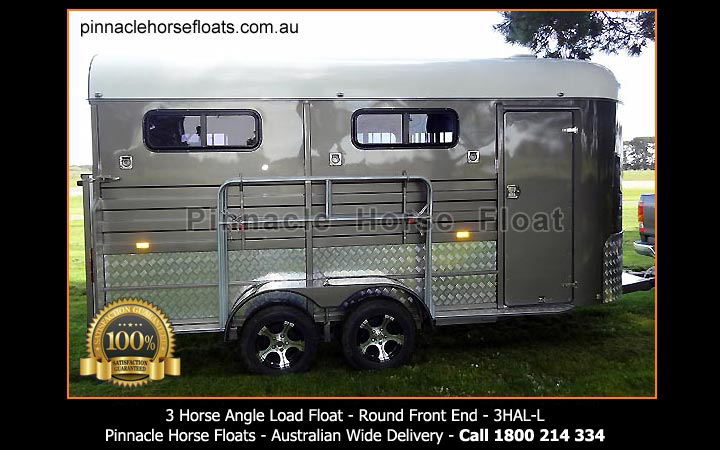

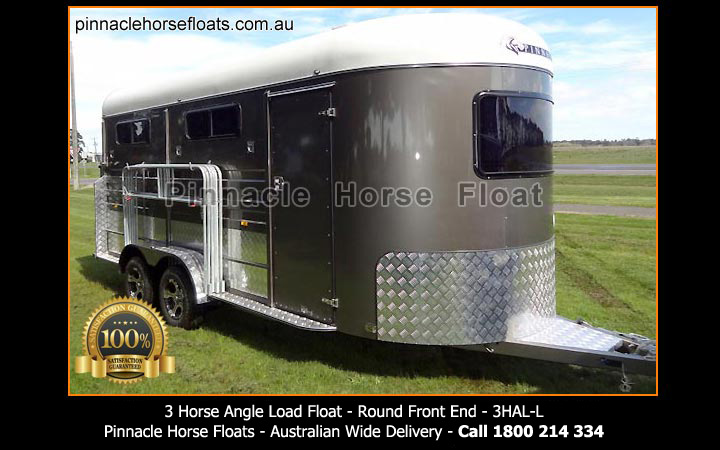

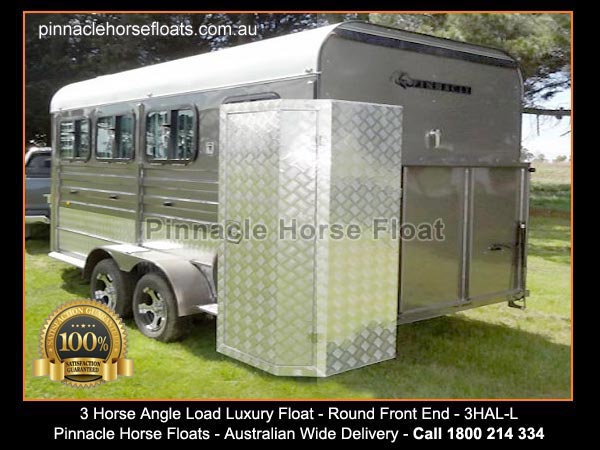

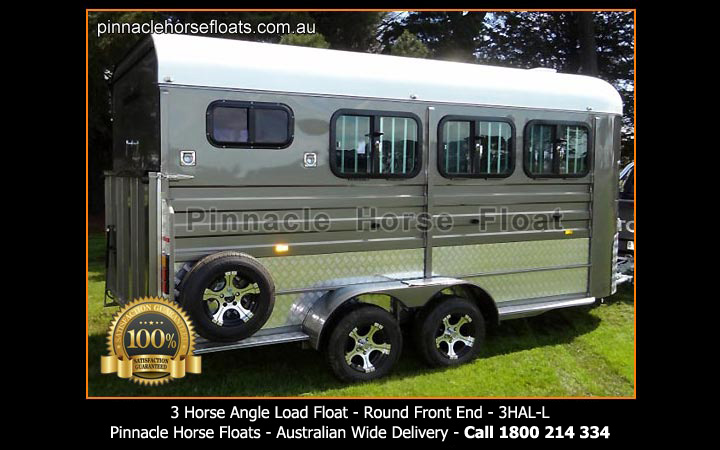

3 Horse Angle Load Float
Luxury Kitchen Beds 3hal-l
28,000.00 Incl GST
Click here to
Calculate Shipping


3 Horse Float Angle Load Luxury
kitchen, Fridge, Water Tank and sleeping beds 3hal-l
Please Note- All Our Floats Come With 26mm Composite Flooring As Standard

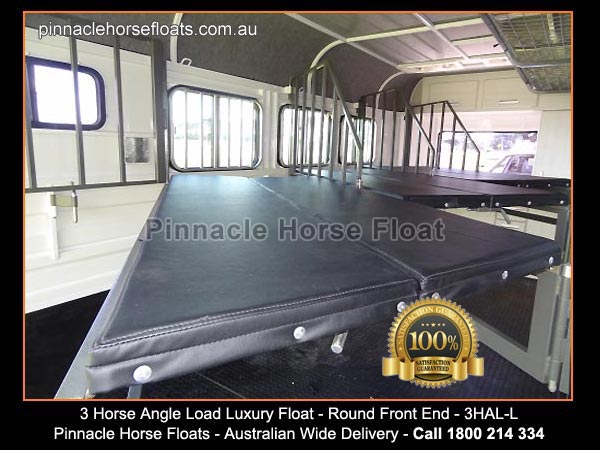

Horse Float New, 3hal-l comes with 3 x fold up bay bunks, 12 volt fridge, microwave, 5 self closing drawers, wardrobe, 90 litre water tank, 12volt pump, sink & tap, outside tap 4 wheel electric braked axles with electric breakaway system, On top quality roller rocker suspension, with 4 x 8 leaf miltary springs, mounted to hot dipped galvanised 4mm chassis. All nuts and bolts are stainless steel, heavy duty 50mm trailer axles. Composite Flooring

Upgrade your horse float with one of our many option extra's. "Click Here for more info"

You will not find a better built float. Australian wide delivery upon request.
Call 1800 214 334 today!

INTERIOR & EXTERIOR

  • 12 volt pump, sink & tap

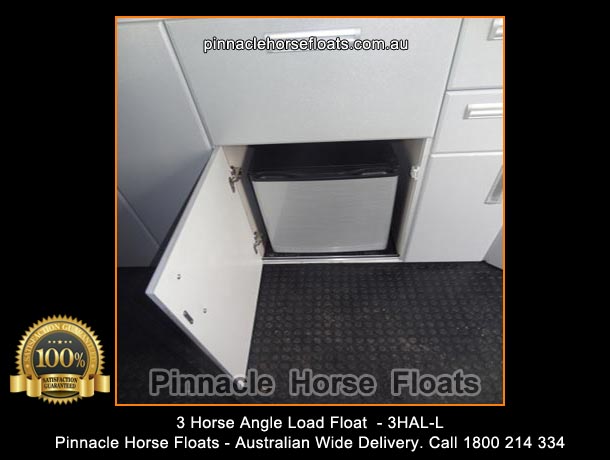

  • 12v/240 volt built in fridge
  • 240 volt built in microwave
  • 90 litre water tank
  • Bed Length - 163cm x 84cm Wide

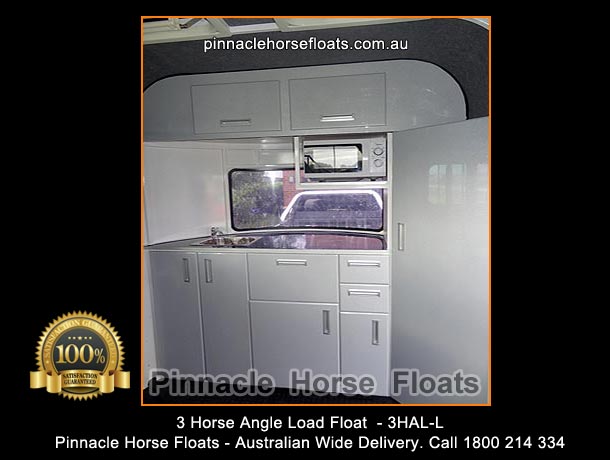

  • Kitchen bench top has Sink

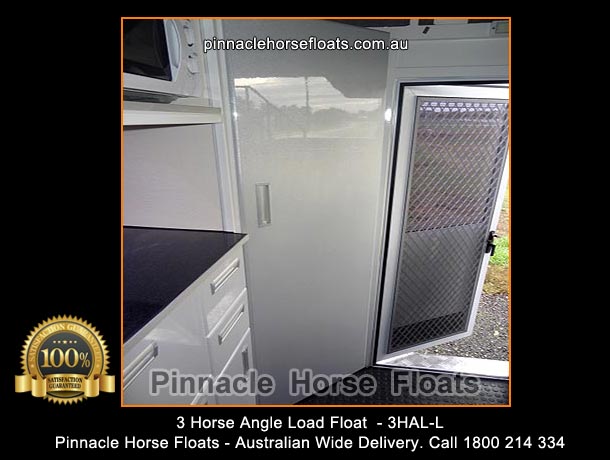

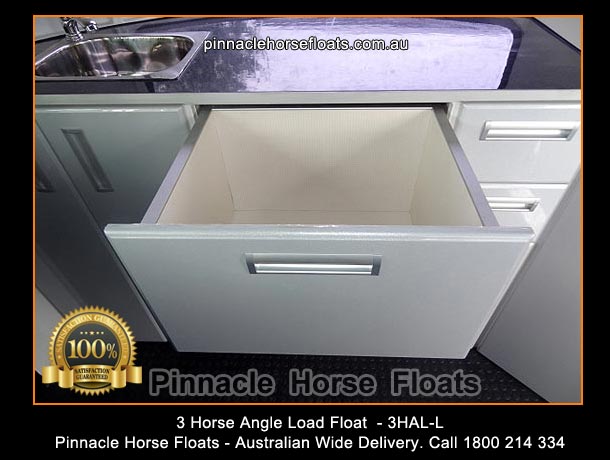

  • Kitchen with 5 self closing drawers and wardrobe
  • Drawbar checker plate - 1.2mm
  • Floor rubber matting - 10mm
  • 26mm Composite Flooring

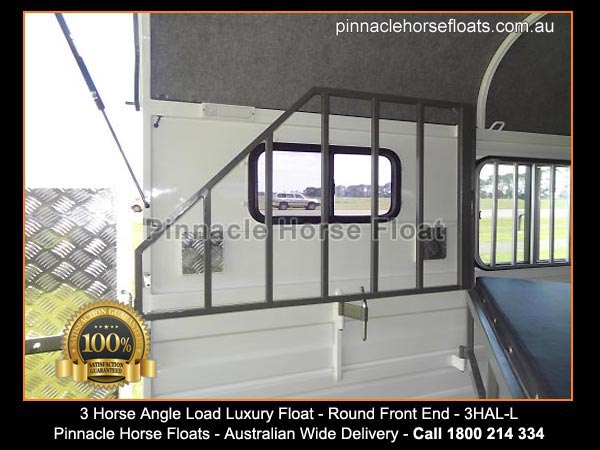

  • Horse protection frame - fully padded
  • Rear door hitches - 6mm copper hinges
  • Rubber matting for horse door - 28mm ribbed rubber matting
  • Rubber matting inner side panels - 6mm rubber matting
  • Rug Rack Located at front of float
  • Side horse rings x 4

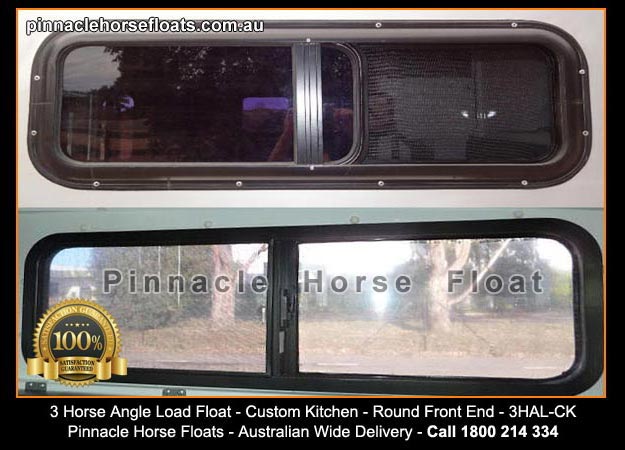

WINDOWS & DOORS

  • Front window 1 x 1220 x 610
  • Roof fully moulded

WHEELS & TYRES

  • Heavy duty 18R14c light truck tyre
  • Wheels 14" alloy rims

AXLES & SUSPENSION

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes - full twin axle electric brakes with "Brake Away System"
  • Nuts and Bolts - all stainless steel
  • Suspension - 8 leaf roller rocker tandem spring axles

CHASSIS & FRAME

  • Body Panels- Galvanised 1.2mm
  • Double Dipped Galvanised RHS 4mm Chassis
  • Frame Double Dipped RHS 2.5mm

CHASSIS & FRAME

  • Rear lights - L.E.D.
  • Retro reflectors x 8 units
  • Side lights x 4 units
  • Trailer Plug - square seven pin

DIMENSIONS (L x W x H)

  • Size Of Bays - 245cm Long x 80cm Wide

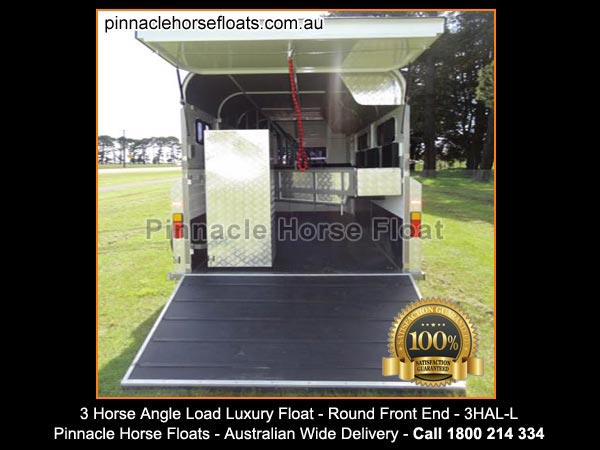

  • Size Of Ramp Door - 2020 x 1210
  • Size Of Side Door - 1755 x 615
  • Body Dimensions - 5200 x 1980 x 2230
  • Inner Dimensions - 5180 x 1930 x 2155
  • Internal Height - 2200mm
  • Overall Dimensions - 6100 x 2280 x 2500
  • Size Of Side Door - 1755 x 615

WEIGHT

  • Gross - 3500kg
  • Tare - 1900kg
