For complete details and further information:
2 Horse Straight Load Float
Standard Deluxe 2hsl-sd
21,995.00 Incl GST
Click here to
Calculate Shipping


2 Horse Straight Load Float Standard Luxury 2hsl-sd

Please Note- All Our Floats Come With 26mm Composite Flooring As Standard

This Horse Float, 2hsl comes with all the options, including interior lighting, electric braked axle with electric breakaway system, hot dipped galvanized 4mm chassis. All nuts and bolts are stainless steel, heavy duty trailer axles, aluminum mag wheels.

Upgrade your horse float with one of our many option extra's. "Click Here for more info"

You will not find a better built float. Australian wide delivery upon request.
Call 1800 214 334 today!

INTERIOR & EXTERIOR

  • Bracing wheel x 1
  • Drawbar checker plate - 1.2mm aluminium
  • Drawbar safety chain x 2
  • 26mm Composite Flooring
  • High Intensity anti rust strut
  • Hinges For rear door- Special 6mm brass hinges

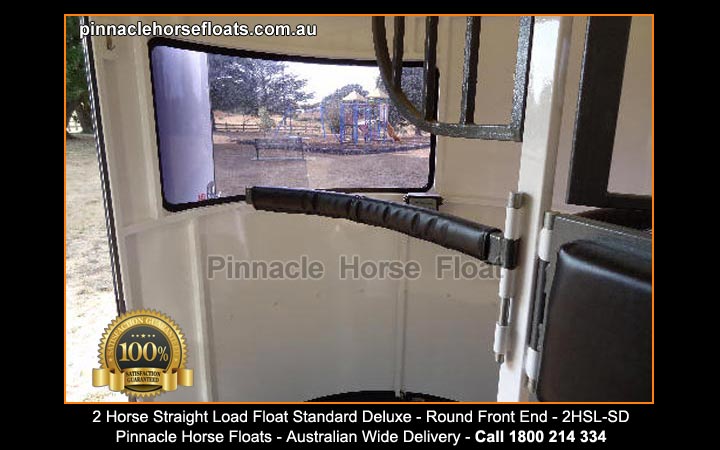

  • Horse Protection - Fully Padded
  • Painting - Two tone
  • Pedal & Aluminium Step - 1.2mm Decoration Board

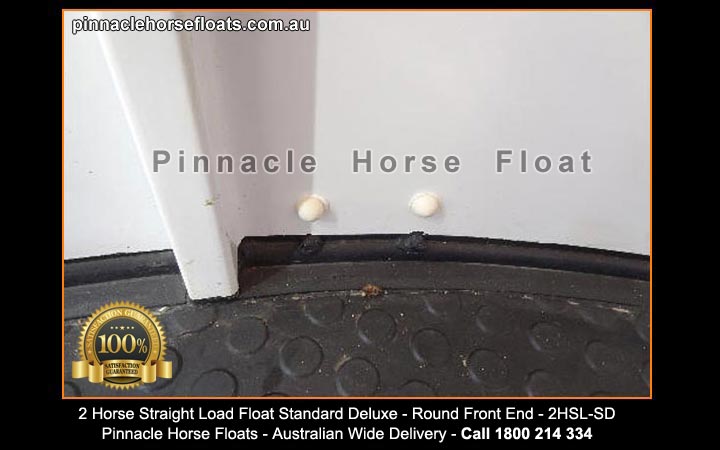

  • Rubber matting for floor - 10mm rubber matting
  • Rubber Matting For Ramp Door - 28mm ribbed rubber matting
  • Rubber Matting for side panels - 6mm Rubber matting
  • Stainless Horse Ring - four
  • Upper Rear and ramp door strut

WINDOWS & DOORS

  • Front Window - 1220 x 610mm
  • Roof - Special Moulded FRP 3475 x 1750mm
  • Side Windows - 2 on each side

WHEELS & TYRES

  • Heavy duty 18R14c light truck tyre
  • Non recessed - Mudguard Checker Plate - 1.2mm Aluminium

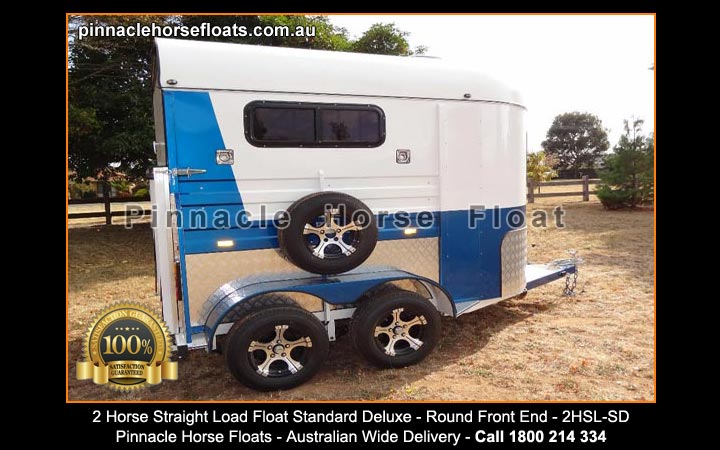

  • Spare Wheel x 1
  • Wheels 14" alloy rims

AXLES & SUSPENSION

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes - Double axle electric brakes with breakaway system
  • Nuts and Bolts - all stainless steel
  • Suspension - 6 leaf roller rocker tandem spring axles

CHASSIS & FRAME

  • Body panels galvanised 1.5mm
  • Double dipped galvanised RHS 4mm Chassis
  • Frame double dipped RHS 2.5mm

CHASSIS & FRAME

  • Rear lights - L.E.D
  • Retro reflectors x 8 units
  • Side Lamps - 6 L.E.D. Lights
  • Trailer Plug - square seven pin


DIMENSIONS (L x W x H)

  • RAMP DOOR - 1800 x 1210mm
  • Rear Upper Door - 1800 x 1065mm
  • Size of side door - 1755 x 615mm
  • Bay Length- 1830mm
  • Bay Width - 700mm
  • Body Dimensions - 3075 x 1750 x 2230 mm
  • Inner dimensions - 3050 x 1700 x 2155 mm
  • Overall Dimensions - 3925 x 2290 x 2590 mm
  • Size Of Bays - 230cm Long x 75cm Wide

WEIGHT

  • Gross - 3500kg
  • Tar e- 1400kg
