3 Horse Angle Load Float Standard 3hal-s
This horse float 3hal comes with 4 wheel electric braked axles with electric breakaway system on top quality roller rocker suspension with 4 x 8 leaf military springs, mounted to hot dipped galvanised 4mm chassis. All nuts AND bolts are stainless steel, heavy duty 50mm trailer axles.
Upgrade your horse float with one of our many option extra's. "Click Here for more info"
You will not find a better built float. Australian wide delivery upon request.
Call 1800 214 334 today!
INTERIOR & EXTERIOR
- Drawbar checker plate 1.2mm

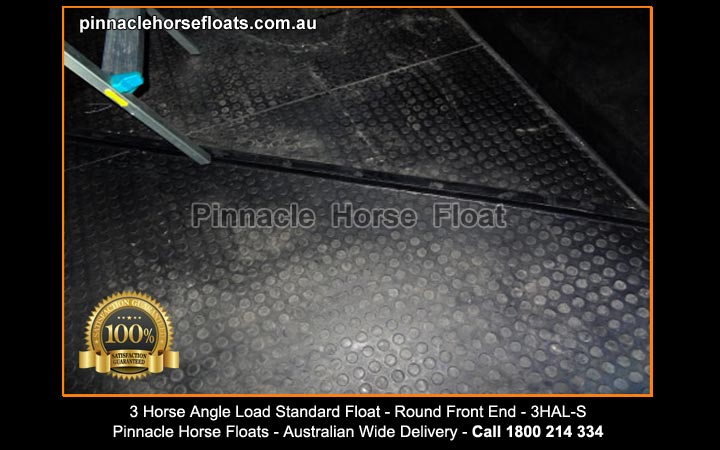

- Floor rubber matting - 10mm
- Hardwood board for floor and ramp - 22mm
- Horse protection frame - fully padded
- Rear door hitches - 6mm copper hinges
- Rubber matting for horse door - 28mm ribbed rubber matting
- Rubber matting inner side panels - 6mm rubber matting
- Rug Rack Located at front of float
- Side horse rings x 4
WINDOWS & DOORS
- Front window 1 x 1220 x 610
- Roof fully moulded
WHEELS & TYRES
- Heavy duty 18R14c light truck tyre
- Wheels 14" alloy rims
AXLES & SUSPENSION
- Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
- Brakes - full twin axle electric brakes with "Brake Away System"
- Nuts and Bolts - all stainless steel
- Suspension - 8 leaf roller rocker tandem spring axles
CHASSIS & FRAME
- Body Panels- Galvanised 1.2mm
- Double Dipped Galvanised RHS 4mm Chassis
- Frame Double Dipped RHS 2.5mm
CHASSIS & FRAME
- Rear lights - L.E.D
- Retro reflectors x 8 units
- Side lights x 4 units
- Trailer Plug - square seven pin
DIMENSIONS (L x W x H)
- Size Of Side Door- 1755 x 615
- Size Of Ramp Door- 2020 x 1210
- Body Dimensions- 4575 x 1980 x 2230
- Inner Dimensions- 4550 x 1930 x 215
- Internal Height- 2200mm
- Overall Dimensions- 5425 x 2280 x 2590
- Size Of Bays- 230cm Long x 65cm Wide
WEIGHT
- Gross - 3500kg
-
Tare - 1600kg
